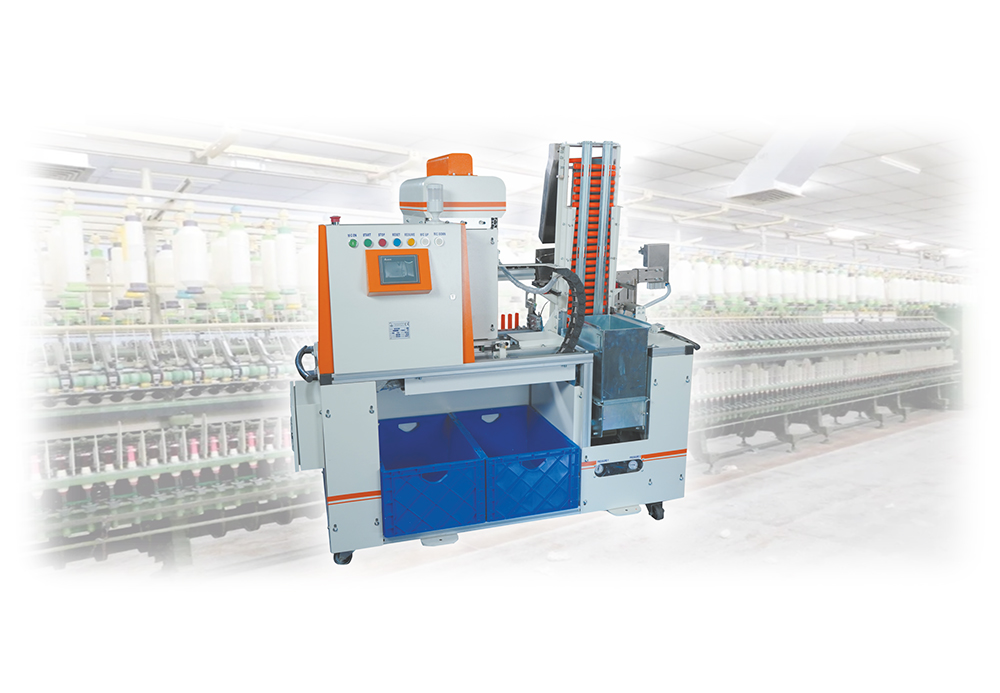

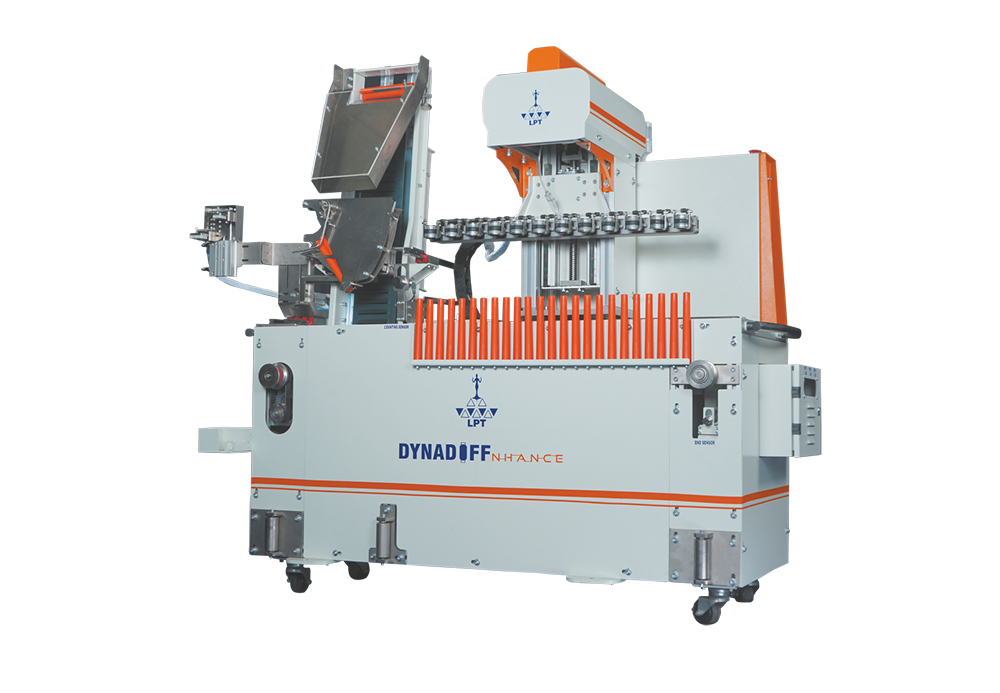

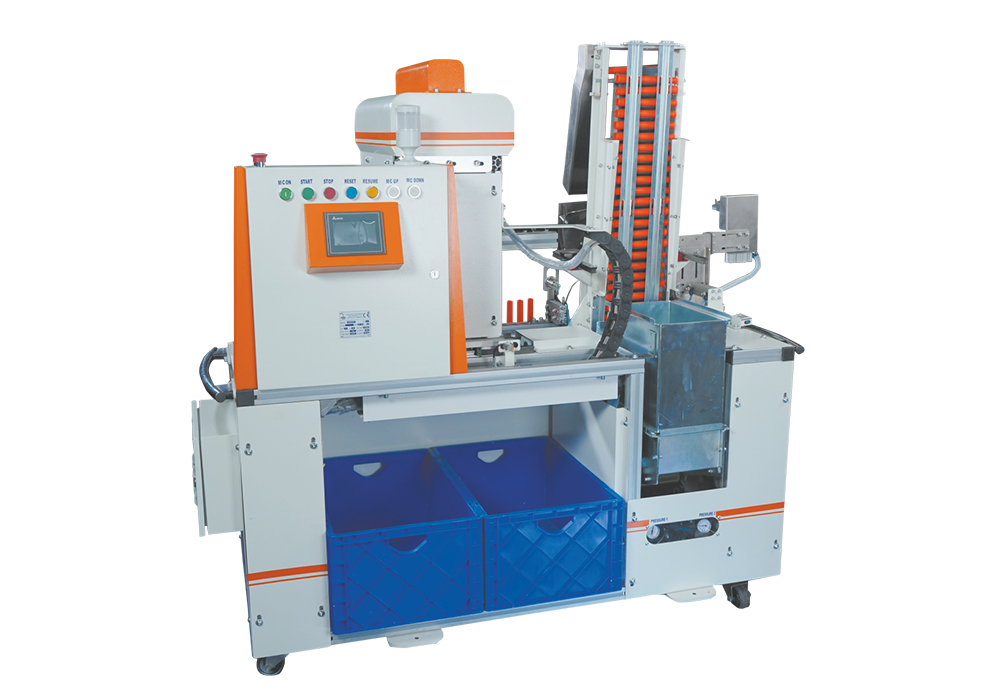

Enhanced version of DYNADOFF with ease of operation, self cop orientation, end to end cop pickup and tube placement…
Characteristics
- An integrated auto cop feeding with orientation
- Ergonomically designed for empty cop feeding
- Reduction of human fatigue
- Error proof feeding of cops to spindles
- Rugged, robust and user friendly construction
- Ease of handling with swivel wheels
- Spl to Spl – doffing
Special Features
- Suitable for 180 mm to 210 mm bobbin length.
- Performs with all kind of yarns with specified parameters setting.
- Two Auto Doffer works at the same time from Right & Left hand sides of Ring Frame.
- No Battery power and no charging required – increasing productivity and time saving with erratic electric power supply.
- Low maintenance and superior accuracy.
- Picks 12 full cops at a time.
Specifications
PARAMETER |
LPT – DYNADOFF Nhance |
---|---|
Installed kW | 1.51 KW per unit |
Cops pick up & feeding time | 3 spls/unit / second. |
Full cops pick up | 100% |
Empty cops feeding | ? 98% |
Air Consumption | 2.45 CFM/Doff/1200 spindles |
Power Consumption | 0.37kW/hr |
End break in % | Less than or equal to manual doffing |
Operating mode | Power and energy chain drive |
Additional feature | Lappet turnover as per setting |
